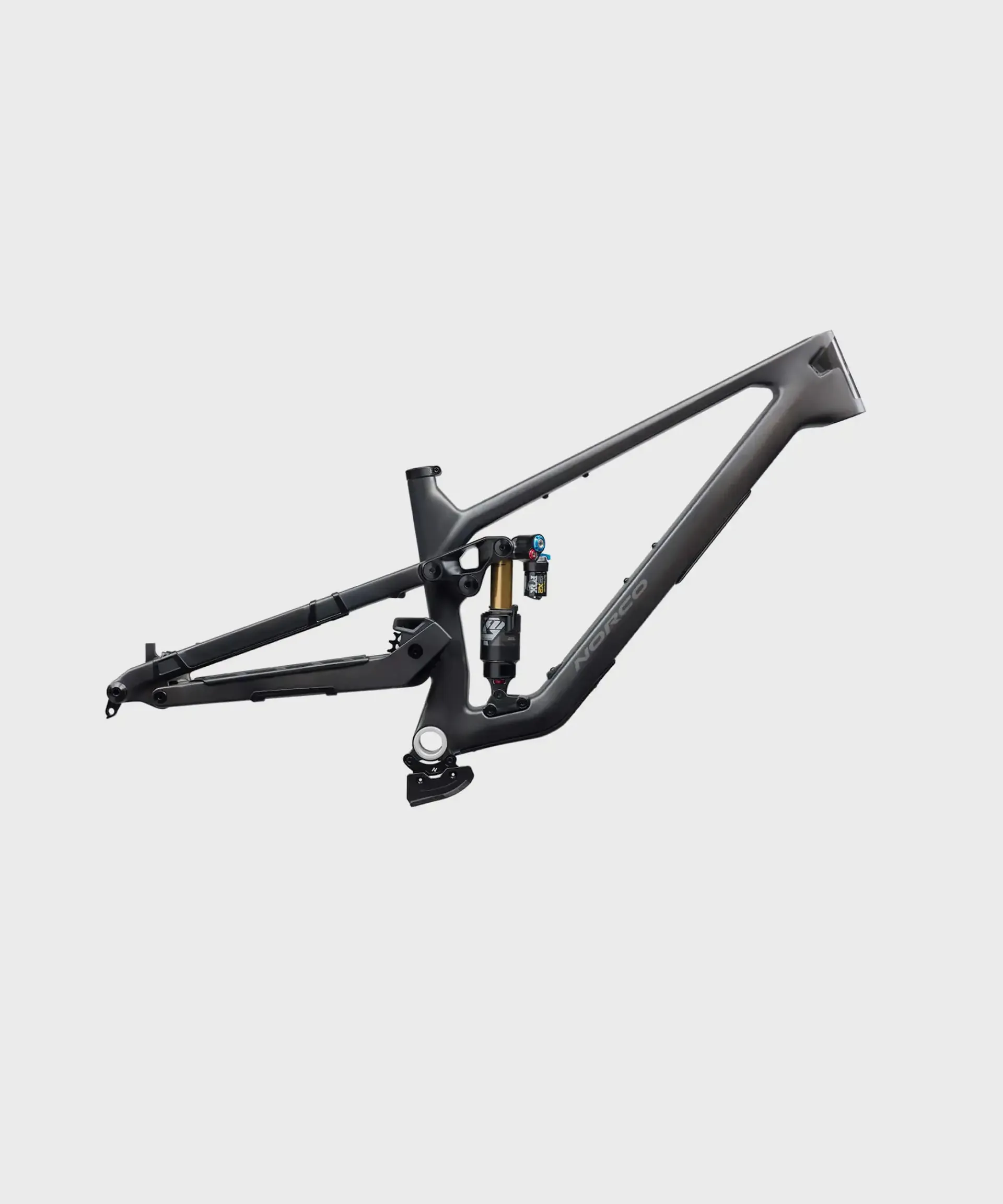

Norco Sight Carbon 160mm Frame S3 Black with Free Fox 38 170mm Fork

Brand:Norco

Code:NO-0620415156/910-21-284

Buy a Sight 160 Carbon Frame and get a FREE Fox 38 Factory 170mm 29 fork in Orange!

We've taken the confidence-inspiring stability of a Sight and made it more. Supported up front with a 170mm fork and in the rear with a longer 65mm stroke shock for 160mm; giving the Sight all you need for attacking tech and rougher, BC-inspired trails.

ENDURO GEOMETRY
Downhill oriented geometry, with efficient pedaling.
Sight 160 features a slacker headtube angle and a slightly taller bottom bracket than our standard Sight geometry to accommodate all the G's you push and obstacles you roll.

CONSISTENT RIDE FEEL
Balanced weight distribution for top-of-class ride feel across sizes.
Stabilized rear centres with proportional rear ends, and seat tube angles that steepen from S1 to S5, ensure consistent rider weight distribution. Shorter seat tubes with long dropper posts keep the saddle out of the way on technical descents the Sight is known for.

PRECISE SUSPENSION
VPSHP Suspension Platform
Designed with Norco’s VPSHP (Virtual Pivot Suspension | High Pivot) suspension layout, the Sight’s increased rearward axle path improves suspension performance in technical terrain.

Through extensive testing using an i-track configured idler location, anti-squat has been tuned for efficiency and responsive feel under power. The idler mounted to the chainstay manages growth and pedal-kick back.

EVOLUTION
Norco Design Technology
VPSHP is the next evolution of Norco’s VPS suspension platform building off years of trail and all-mountain suspension development experience.

This design shares many similarities with our VPS layout including a rear axle and brake mounted to the seatstay, rotating about a virtual instant centre controlled by chainstay and upper rocker link while also incorporating the benefits of increased rearward axle path.

WHEEL SIZE
Built to accomodate rider preference in wheel size.
Sight 160 comes specced with a 27.5" rear wheel (MX). Swapping the link arm and lower shock mount with our 'Missing Link Kit' converts between 27.5" and 29" to let you pick the wheelsize that suits you best, while maintaining geometry and kinematics to ensure consistent fit and bike setup.

RIDE ALIGNED™
Suspension Setup Demystified.
Norco’s NEW Ride Aligned Setup Guide with baked-in Setup Assistant provides a personalized setup baseline, unique to you and your bike without hours of fussing.

It’s like having one of our engineers on call 24/7, as you tweak your settings to perfection. Even if you are a shock pump novice, the Ride Aligned Setup Guide will have you confidently dialing in your settings for the best day of riding, every day.

BUILT TO LAST, GUARANTEED
No Other Way Limited Lifetime Warranty.
Sight 160’s durable frame design, hardware and component decisions have been made specifically to keep the Sight on the trail for longer. Accidents can happen, and when they do, our No Other Way Limited Lifetime Guarantee is our promise to get you back on the trail as soon as possible.

Note - This is a Sight 150 frame that has been travel adjusted to 160mm which is the same process Norco do. This slightly tweaks the geometry numbers so plase refer to Sight 160 geo numbers.
Technical Information
SPECIFICATION

FRAME Sight Full Carbon, High Pivot Horst Suspension, 160mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™
REAR SHOCK Fox Factory Float X2
WHEEL SIZE 29/27.5 Mullet Set Up as standard. Includes link to convert to 29.

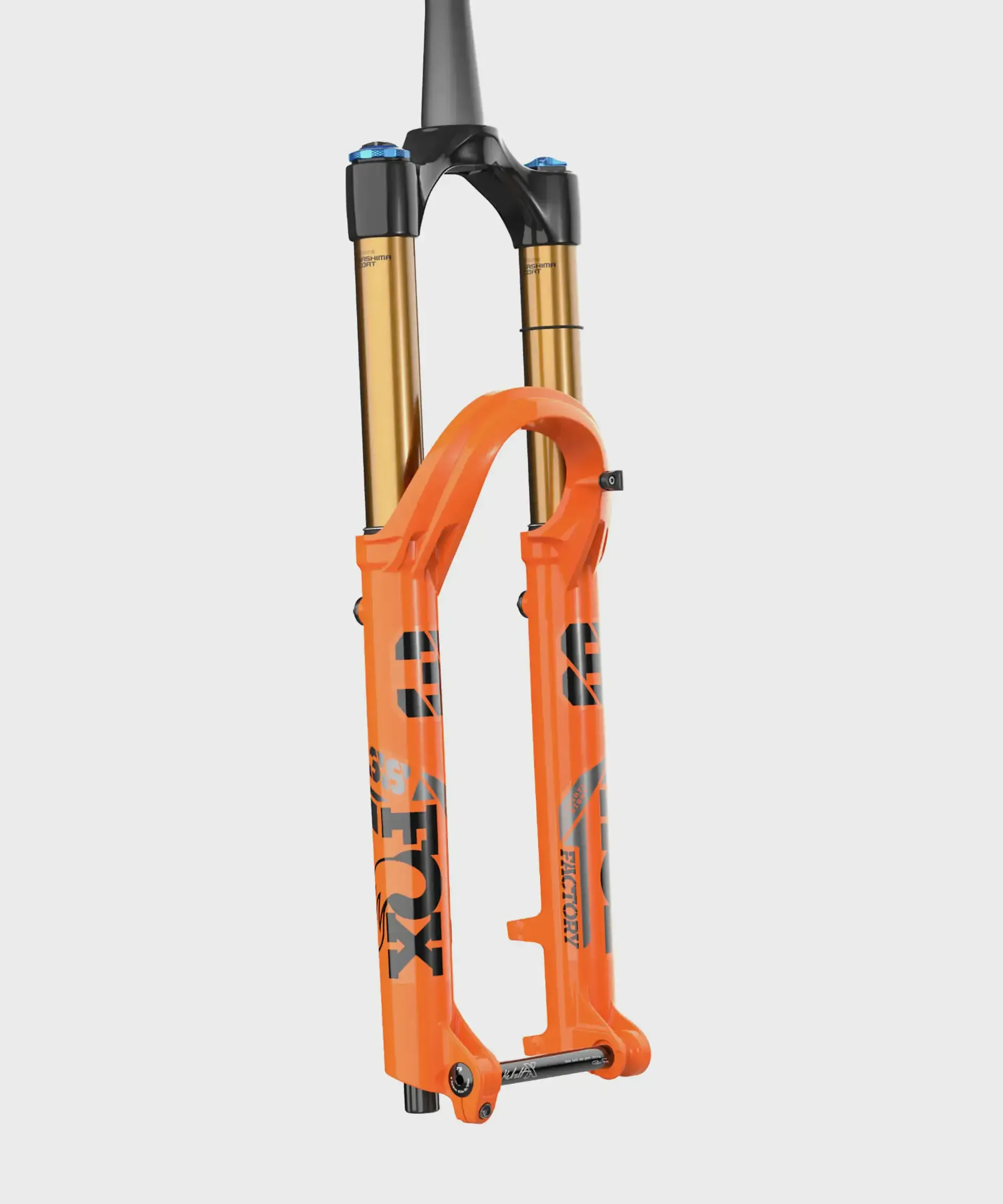

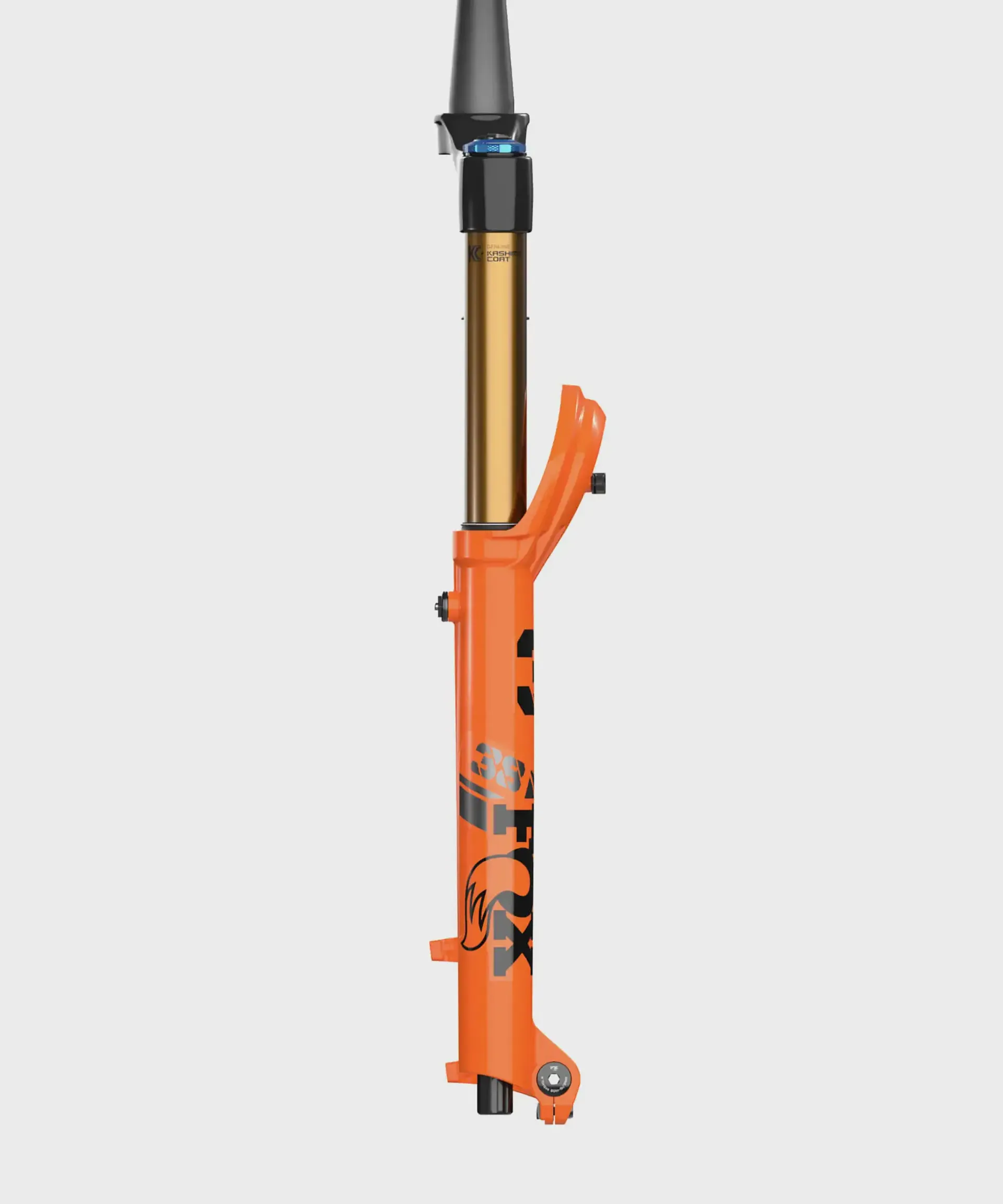

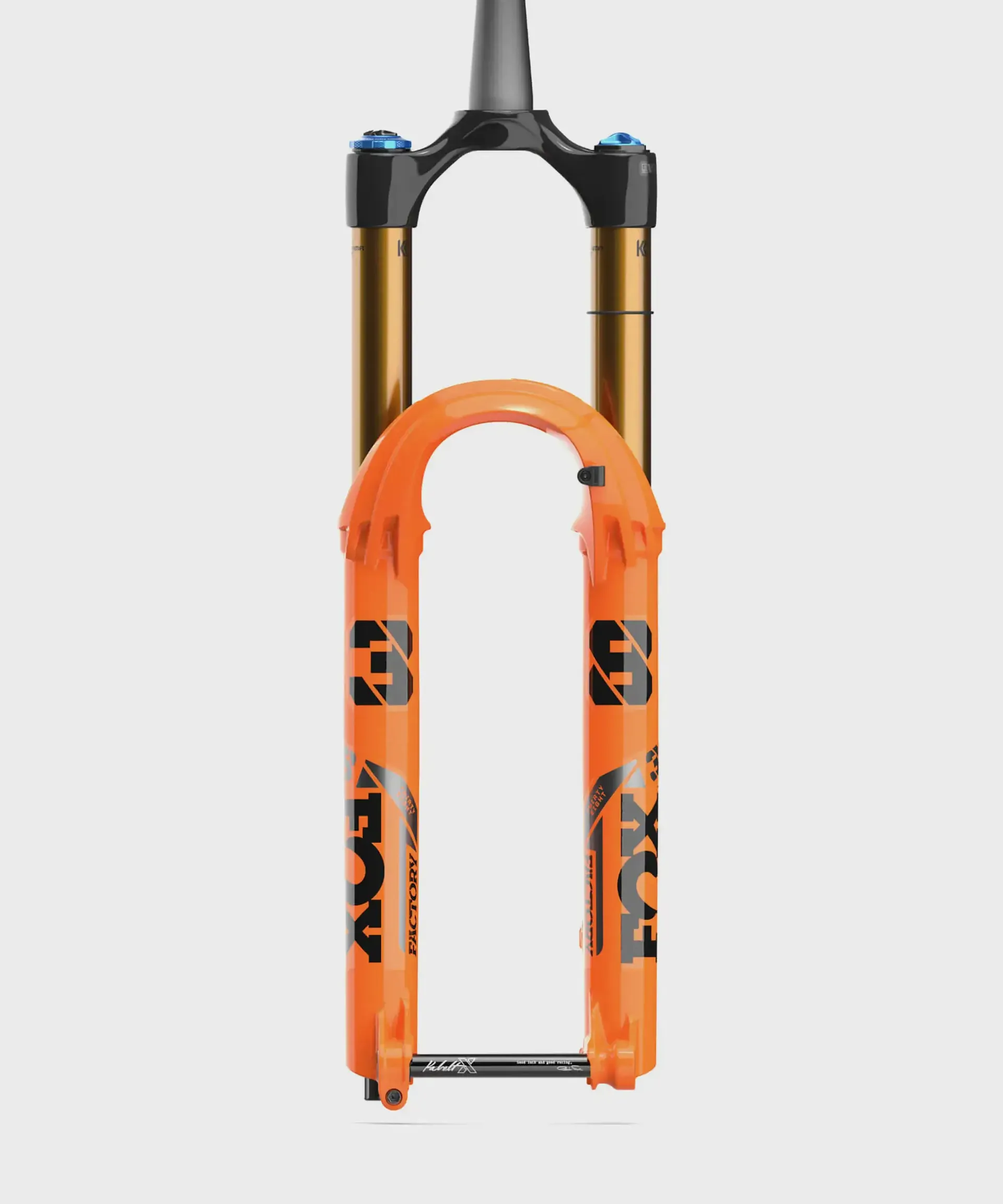

FORK:
Fox Factory 38 in Orange
Damper: GRIP X2
Travel: 170mm
Offset Options:
44mm.
Wheel Size: 27.5" & 29".
Axle Options:
Kabolt-X 110mm.
Steerer: 1.5 Tapered.
Colour: Gloss Orange
Upper leg finish: Genuine Kashima Coat.
Sizing Information

GEOMETRY

All measurements are shown in millimetres.


12345
WHEEL SIZE29"/27.5"
RIDER HEIGHT (FT)5'1-5'5"5'4-5'8"5'7-5'11"5'10-6'2"6'1-6'5"
RIDER HEIGHT (CM)155.0-165.0162.5-172.5170.0-180.0178.0-188.0185.5-195.5
TRAVEL (MM FRONT / MM REAR)170/160mm
REACH416441466491516
STACK618627636645654
HTAHEAD TUBE ANGLE63.5
OSFORK OFFSET44
STSEAT TUBE LENGTH350370385430445
STAEFFECTIVE SEAT TUBE ANGLE76.376.57777.377.5
RCREAR CENTRE LENGTH420424428432436
BBBOTTOM BRACKET DROP20.5/0
BBHBOTTOM BRACKET HEIGHT357.5
HTTHORIZONTAL TOP TUBE567591615639663
WBWHEELBASE11871220125312871320
SOHSTANDOVER678684690713725
HTHEAD TUBE LENGTH105115125135145
TRAIL135
RECOMMENDED SEATPOST DROP150170200200230
MAXIMUM POST INSERTION250270300300330
STEM LENGTH40
CRANK LENGTH170
TYRE SIZE2.35" - 2.6"
WATER BOTTLE COMPATIBLE1 x 750ml
