| COLOUR | Raw silver (gloss) | CASSETTE | Shimano CSM6100, 11-51T, black, 12 speed |
|---|
| FRAME | 6061 Alloy, SCR Aluminium Front Triangle with Tapered Head Tube, ISCG 2 Guide Mounts, Alloy Symmetrical SCR Rear Triangle, Shape.it and 148mm Boost Dropouts | CHAIN | KMC X12, 12 speed |
|---|

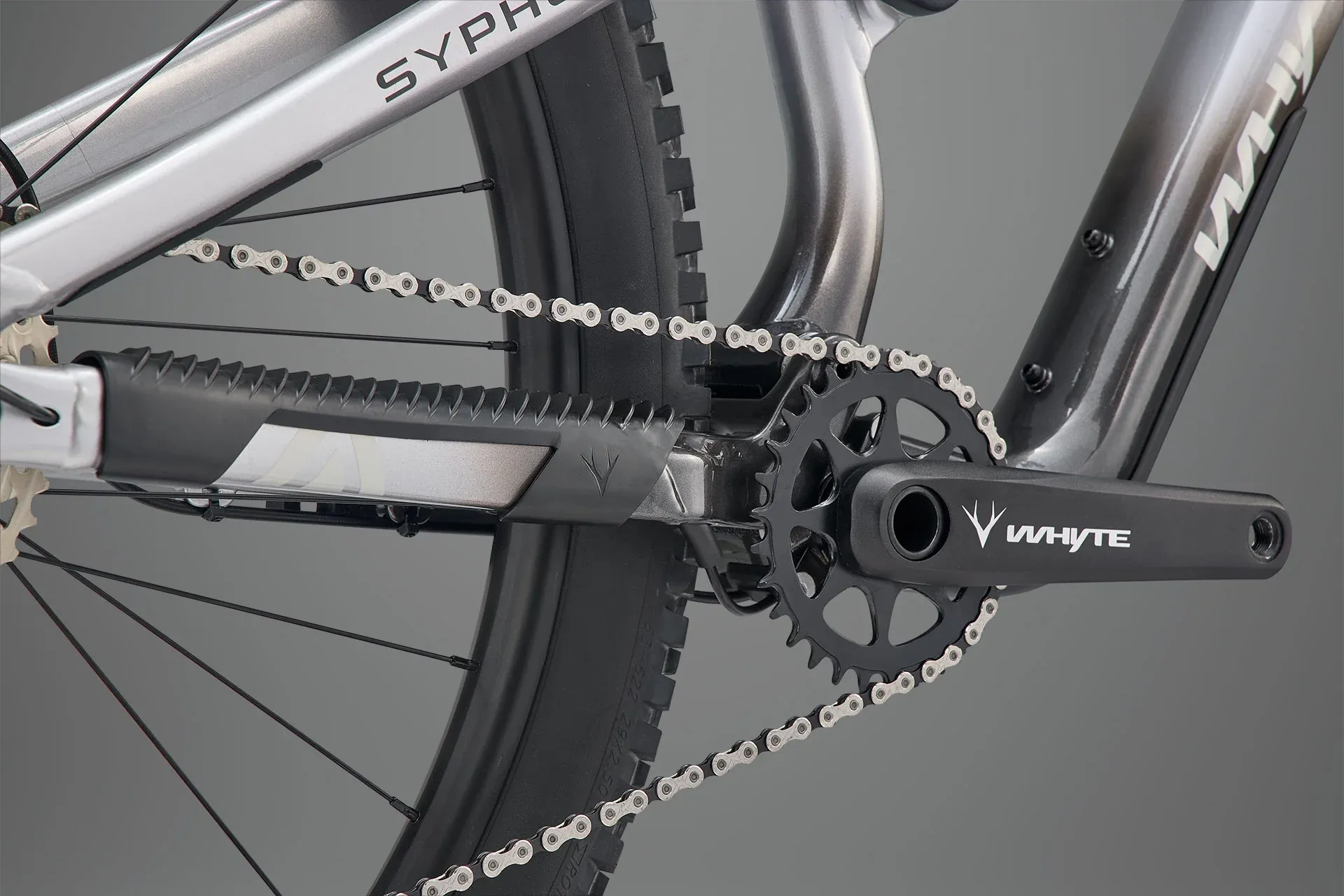

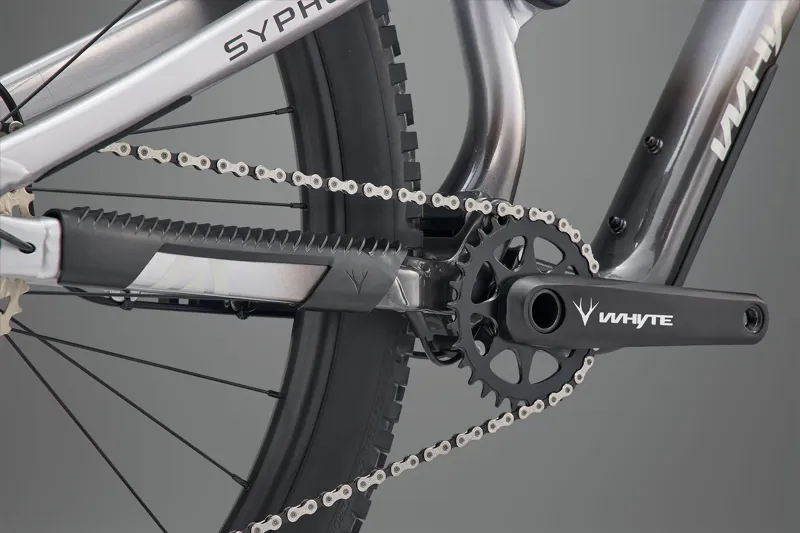

| FORK | RockShox Pike Base 29in, 140mm travel, 44mm offset, DebonAir+, Rush RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle Ultimate | CRANKSET | Whyte, forged two-piece cranks, direct mount, alloy 30T narrow/wide chainring, 165mm crank length (sizes M - XL,)/160mm crank length (size S), Boost, 12 speed, 55mm chainline |
|---|

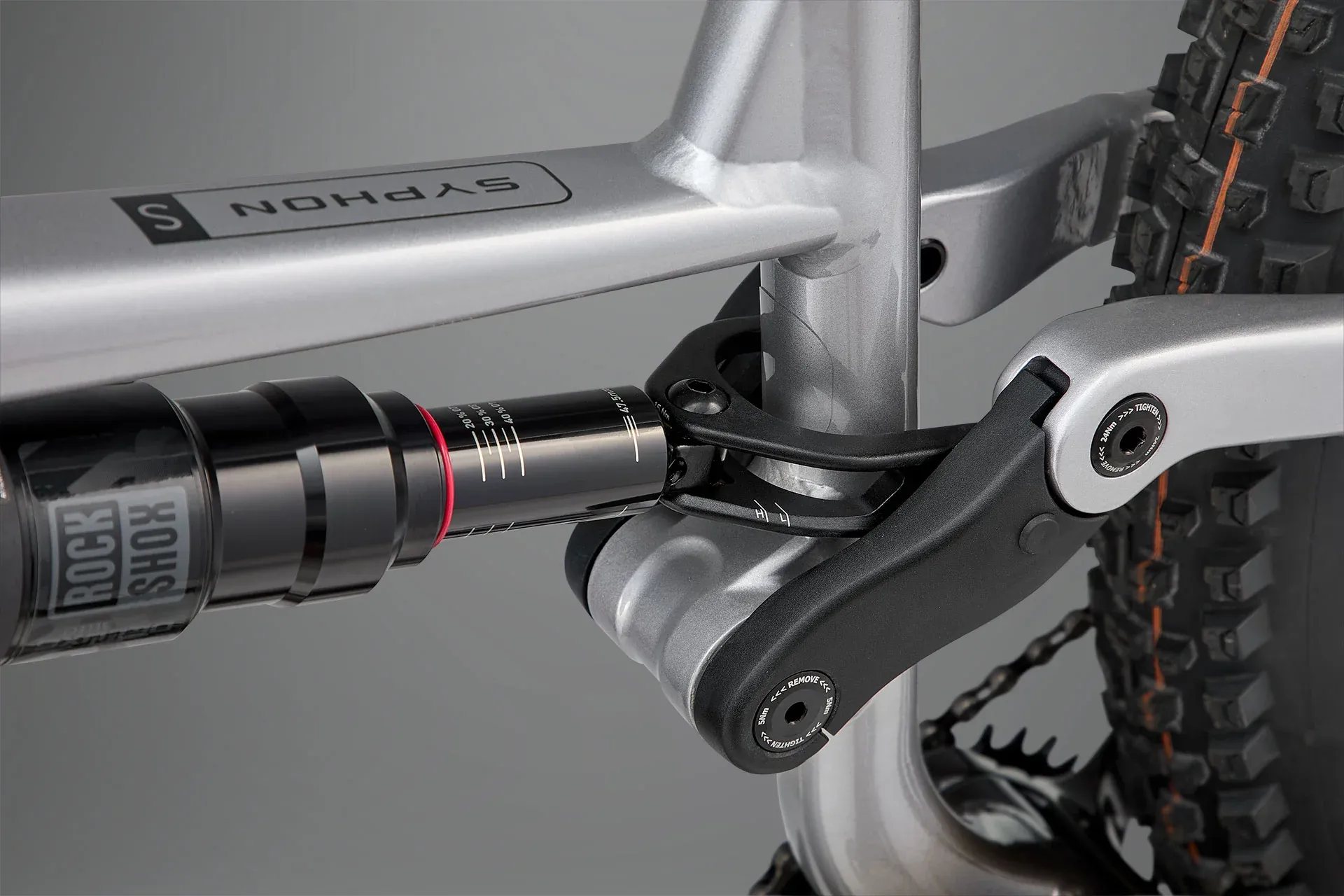

| REAR SHOCK | RockShox Deluxe Select RT, DebonAir, Fast Black coating, adjustable rebound, custom tuned for Whyte | BOTTOM BRACKET | BSA, cartridge bearings, 73mm |
|---|

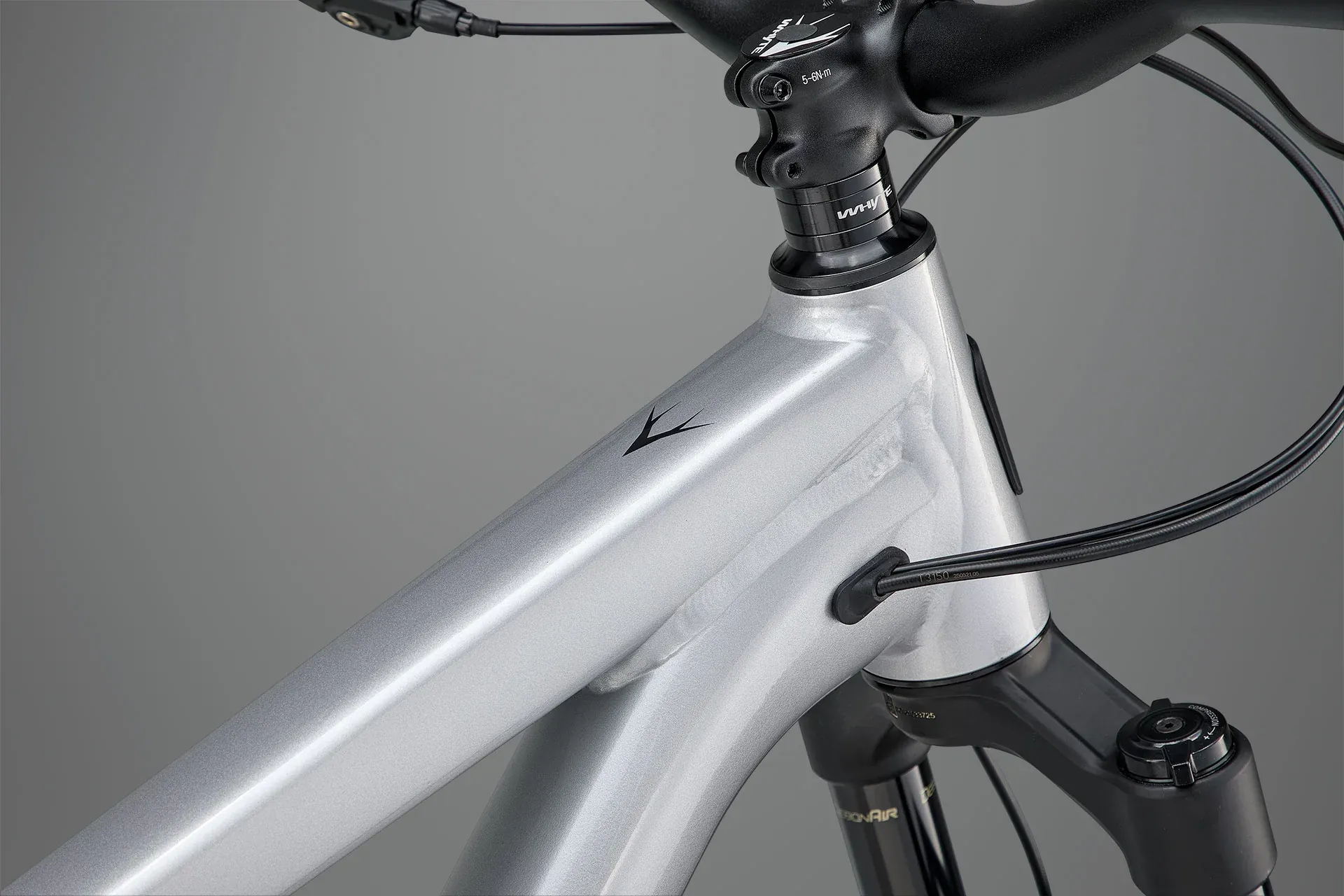

| HEADSET | ZS44 upper, ZS56 lower headset cups, 1 1/18in upper and 1.5in lower with sealed bearings | SEATPOST | TranzX dropper post, 30.9mm, frame size specific drop (size S 150mm drop; sizes M-XL 170mm drop) |
|---|
| REAR HUB | Alloy, double sealed cartridge bearings, 12mm x 148mm Boost thru axle, MicroSpline freehub, 32 hole | SEAT | Whyte Custom |
|---|

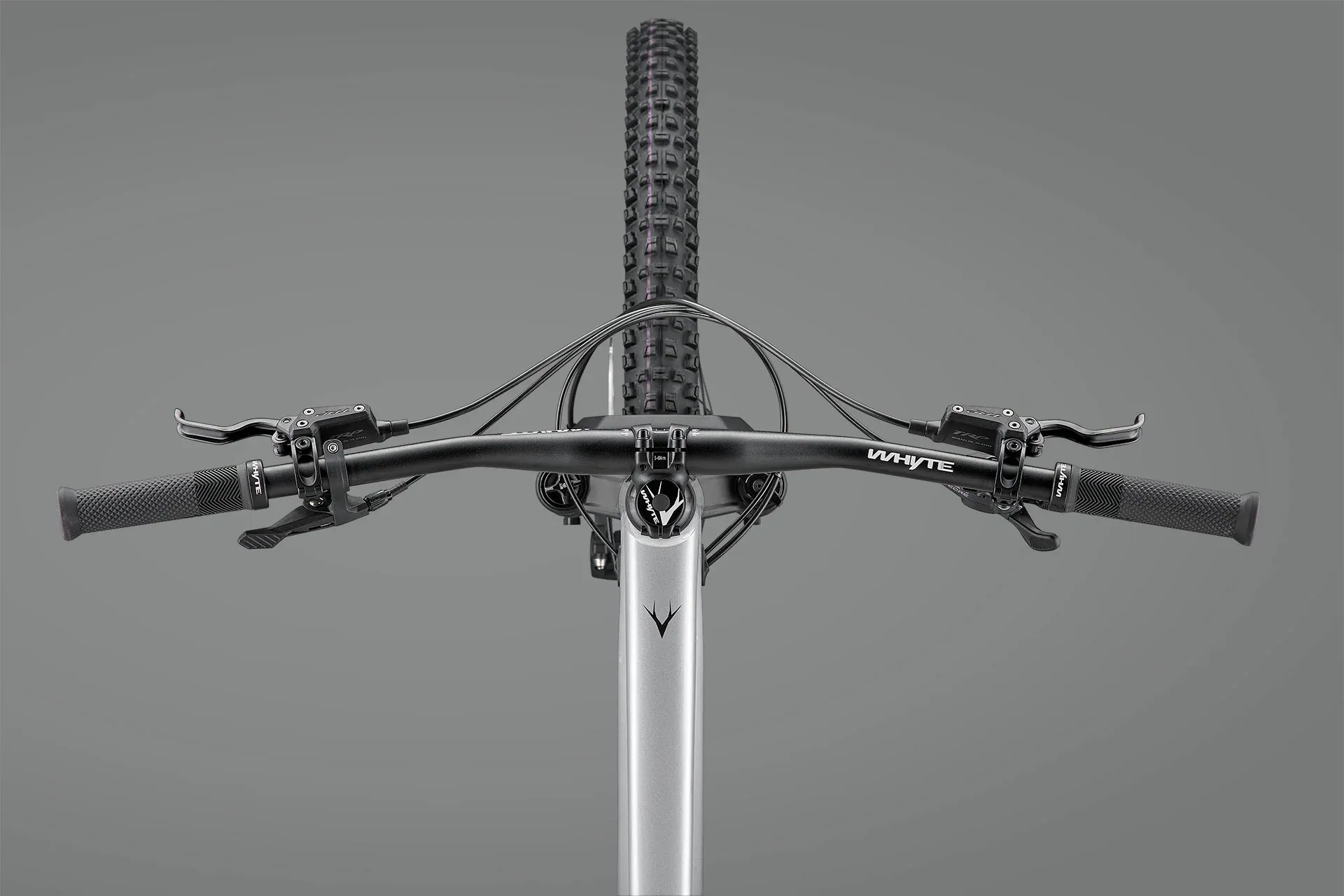

| FRONT HUB | Alloy, double sealed cartridge bearings, Centre Lock, 15mm x 110mm Boost thru axle, 31mm Torque Caps, 32 hole | BAR | Whyte 6061 alloy, 31.8mm bar bore, 30mm rise, 780mm wide |
|---|
| SPOKES | Pillar 14G, black stainless, brass nipples | STEM | Whyte Gravity, 35mm extension, 31.8mm bar bore |
|---|
| RIMS | Whyte Trail, pinned joint, tubeless ready, 32 hole, 30mm internal width; 29in front and rear (sizes M - XL), 29in front and 27.5in rear (size small) | GRIPS | Whyte Lock-on Enduro Grip |
|---|
| TYRES | Schwalbe Albert Trail Radial 29 x 2.5in Trail casing, Super Soft (front); Schwalbe Albert Radial 29 x 2.5in (sizes M - XL), 27.5 x 2.5in Trail casing, Soft (size S) (rear) | BRAKES FRONT | TRP EVO Comp hydraulic disc brake, four piston, sintered metal pads, 203 x 2.3mm rotor |
|---|

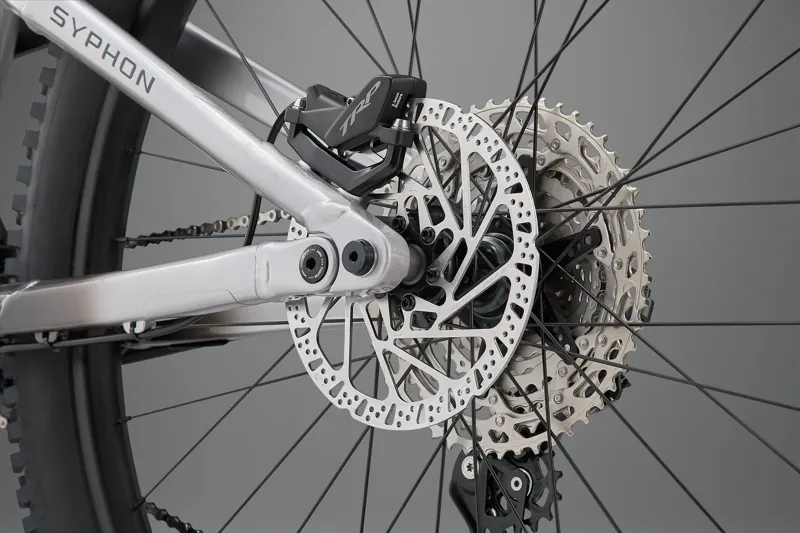

| SHIFT LEVERS | Shimano M6100 Deore, I-Spec EV, 12 speed | BRAKES REAR | TRP EVO Comp hydraulic disc brake, four piston, sintered metal pads, 180 x 2.3mm rotor |
|---|
| FRONT MECH | N/A | BRAKE LEVERS | TRP EVO Comp, I-Spec EV |
|---|
| REAR MECH | Shimano M6100 Deore, SGS, Shadow Plus, 12 speed | PEDALS | Fibre reinforced composite platform |
|---|
| WEIGHT | | | |
|---|
