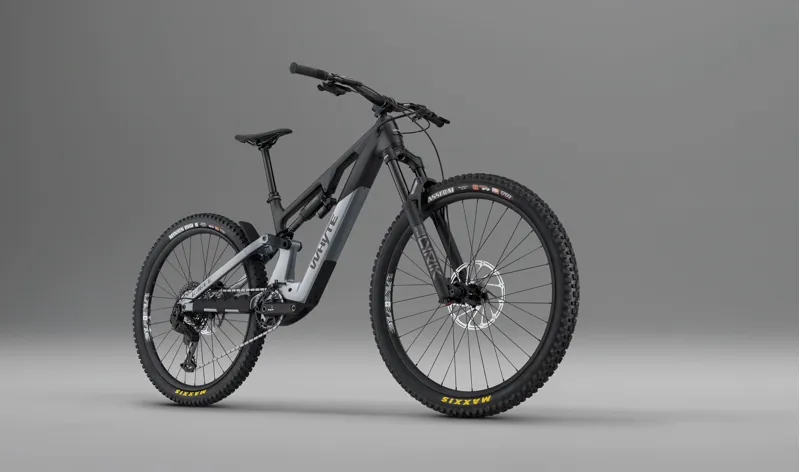

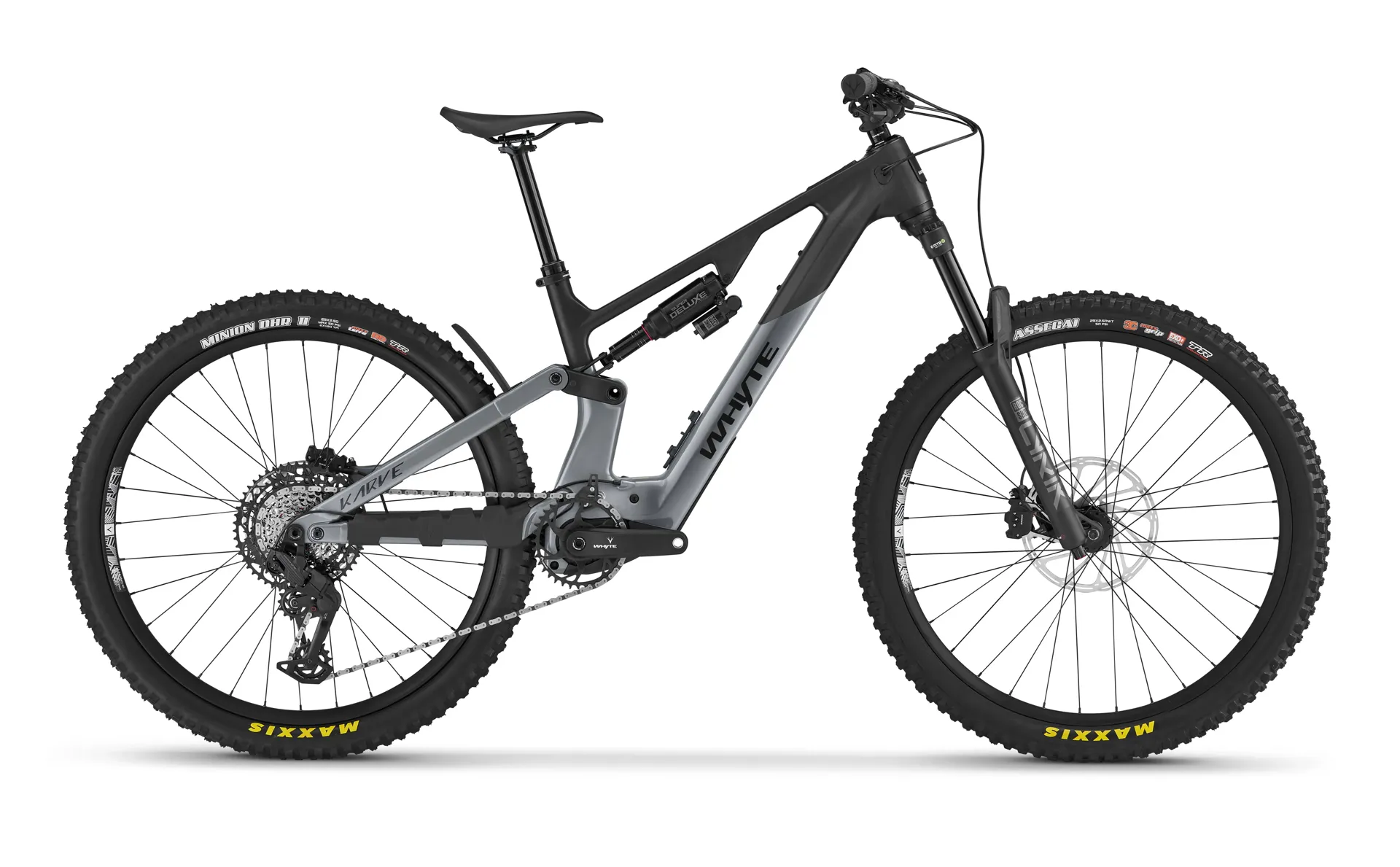

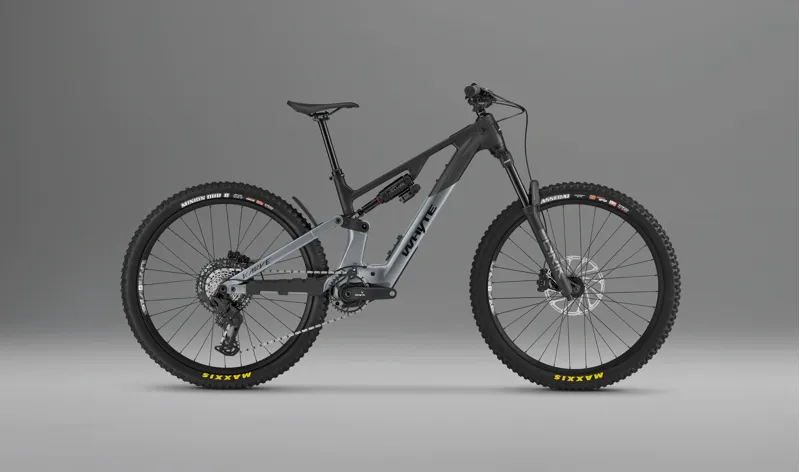

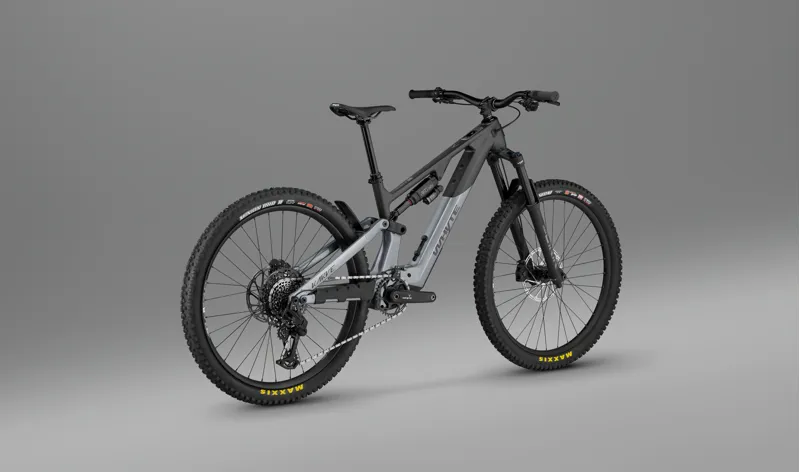

Whyte Karve RS in Dark Silver

Brand:Whyte Bikes

Code:KarveRSSIL

Furiously fast, powerfully capable
Powerful, agile and balanced, Karve RS is a thrilling all-rounder that pairs proportional geometry with size-specific tuning to deliver balanced, assured handling for every rider.Confident and highly capable, it’s built for those who expect more control, composure and consistency from every ride. From steep descents to technical climbs and demanding back-country trails, it delivers the stability and precision to stay on line when it matters. Controlled handling, strong, responsive support and a planted feel let you ride with commitment and carry speed with confidence. Designed, developed and proven in the UK, Karve RS is built to be dependable, resilient and ready to perform all year-round. All so you can turn every ride up to 11 –and keep it there.

Highlights
– 160mm front + 160mm rear of proven Quad-Link 4 suspension, with carefully custom-tuned rear shocks.
– Uni-directional carbon fibre (front) and alloy (rear) frame with geometry adjustment is light and strong.
– Avinox M2S full-torque (up to 150Nm), full-power (1300W peak) motor with five assistance modes (auto, eco, trail, turbo + boost)
– SRAM Eagle 90 mechanical T-Type 1x12 transmission + SRAM Maven Base four-piston hydraulic brakes.
– Avinox DPC100 OLED top-tube touchscreen display delivers a wealth of customisable information at your fingertips.
– 800Wh internal battery so you can ride further.
– 29in trail-smoothing wheels front and rear + MX ready.

Ideal for... Enthusiast riders who want a light, mid-travel full-power enduro-capable eMTB that delivers the very best handling and performance possible for maximum thrills –everywhere.

Charge time (800Wh): 80% in 4hr 54mins approx. from empty, and to 100% in 6hrs 11mins approx. with 4A charger.

Discover Karve >

Snow
Karve RS  Trail/enduro electric mountain bike

Changeable wheelsize

Want an even more corner-carving, steep-trail loving ride characther? With Karve RS you can tailor your bike to your taste even more by converting it from full 29er (29in wheels front and rear) to MX wheels (mixed/'mullet' (29in front, 27.5in rear wheel): simply swap the bike’s stock Shape.It link the MX-specific version (62-66mm; WAMLINK07), together with a suitable e-MTB rated 27.5in rear wheel (category 4, enduro) to retain the ability to switch between high and low geometry settings with the new wheelsize set-up.

Perfect handling for all

Karve RS benefits from proportional sizing throughout the range, with specifically tuned dimensions, geometry, and front- and rear-centres designed to deliver balanced handling and uncompromised trail performance for every rider. By refining fit, weight distribution and ride dynamics for each frame size, Karve RS stays planted, stable and predictable when trails get steep, rough and fast — delivering greater control, more confidence and a composed ride feel whether charging bike park laps, technical descents or full-gas enduro stages.

Avinox inside

Karve RS is powered by the Avinox M2S system. Combining high peak power (up to 1300W) and torque (155Nm) with smooth, responsive delivery, the Avinox system gives you instant drive alongside high-fidelity control to ensure power arrives precisely when you need it, maintaining traction and composure on technical terrain. The internal 800Wh battery delivers the range for longer rides and repeat runs, while its compact, low-weight design preserves agile handling. Fully connected and highly customisable, it lets you fine-tune support to suit your riding – delivering consistent, dependable performance that works seamlessly with you on every trail.

Switchable geometry

Our Shape.It Link flip-chip lets you fine-tune the Karve RS to match your riding style and terrain. Switch between the high and low settings to adjust geometry, slackening the head angle by 0.6 degrees and lowering the bottom bracket by 8mm in the low position. For maximum stability and a planted feel on steep, fast bike park laps and technical descents, run it low. Want a more responsive, efficient set-up for longer rides and big days in the hills? Keep it in the higher position for improved pedal clearance and all-day versatility.

Snow
Forest
Technical Information

Specifications

COLOURDark SilverCASSETTESRAM XS 1270, T-Type, 10-52T, 12 speed
FRAMEUni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 Alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropoutsCHAINSRAM Eagle 70, 12 speed
FORKRockShox Lyrik Select, 160mm travel, 44mm offset, Linear XL, Delta RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealthCRANKSETWhyte 155mm long ISIS crank arms, SRAM direct mount 36T chainring, T-Type
REAR SHOCKRockShox Super Deluxe Select, DebonAir, Fast Black coating, adjustable rebound, 230 x 57.5mm, custom tuned for WhyteBOTTOM BRACKETN/A
HEADSETFSA custom headset, ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearingsSEATPOSTTranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop)
REAR HUBAlloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole, HG freehubSEATWhyte Custom
FRONT HUBAlloy, double sealed cartridge bearings, 15mm x 110mm thru axle, 32 holeBARWhyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide
SPOKES14g stainless black, brass nipplesSTEMWhyte, 35mm extension, 35mm bar bore
RIMSWhyte eMTB sleeved rims, 30mm internal width, tubeless ready, 29" front and rearGRIPSWhyte Enduro lock-on
TYRESMaxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 29 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear)BRAKES FRONTSRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 220mm six bolt Centreline rotor
SHIFT LEVERSSRAM Eagle 70, 12 speedBRAKES REARSRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 200mm six bolt Centreline rotor
FRONT MECHN/ABRAKE LEVERSSRAM Maven Base
REAR MECHSRAM Eagle 90 T-Type mechanical, 12 speedPEDALSFibre reinforced composite platform
WEIGHTTBC

Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.

eBike Specifications

DRIVE UNITAvinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost.
BATTERYAvinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor.
DISPLAYAvinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips.
CHARGERCharger 4A (230V)

Please note: our custom motor covers are not currently compatible with the aftermarket Bosch eBike Alarm and Connect module to add bike tracking and alarm functionality to your Smart System bike

Sizing Information

Geometry

>
FRAME SIZESmallMediumLargeExtra Large
A - REACH (mm)444469494519
B - STACK (mm)615.2626636.7651.1
C - HEAD ANGLE (° degrees)64 / 63.464 / 63.464 / 63.464 / 63.4
D - SEAT ANGLE (° degrees)80.1 (79.5)79.6 (79.0)79.0 (78.4)78.4 (77.8)
E - BB HEIGHT (mm)350.8350.8350.8350.8
F - WHEELBASE (mm)1220.21250.51290.81333
G - REAR CENTRE (mm)445445455465
H - STANDOVER HEIGHT (mm)795795795795
I - SEAT TUBE LENGTH (mm)395420445470
J - HEAD TUBE LENGTH (mm)97109121137
K - MAX SEATPOST INSERTION (mm)260285310335
