Levo 4 Evo is built for riders who dont tiptoe around terrain. The riders who point into the steep stuff, ride bike parks without a chairlift, and want a bike that stays calm when things get fast, rough, and consequential. This is electric enduro.
Technical Specifications
E-bike -
Battery - 840Wh battery

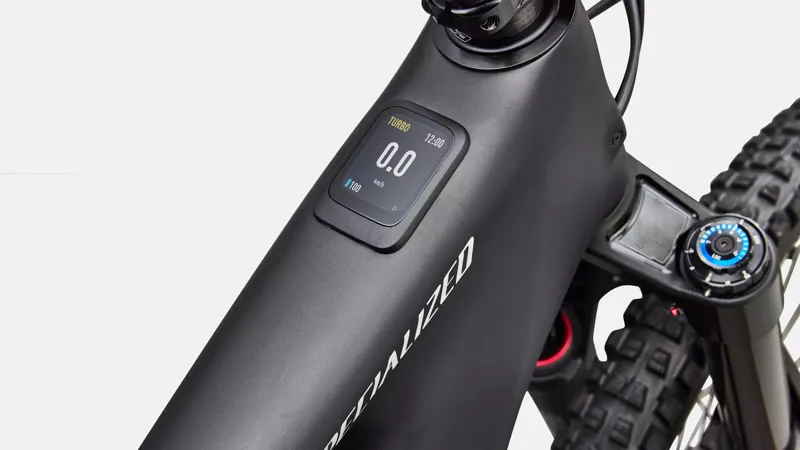

UI/Remote - Mastermind TCU, 2.2" high resolution screen, fully customizable with Specialized app, works with Apple Find My

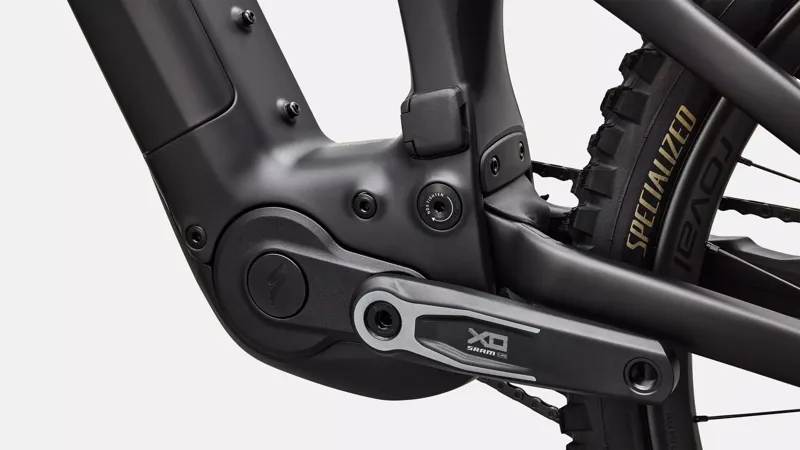

Motor - Specialized 3.1 Motor, 105Nm torque, 810W power
Charger - Specialized 4amp charger
Frameset -
Frame - Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel/27.5" rear wheel, adjustable head tube angle, chainstay length, integrated SWAT storage
Suspension -
Fork - All New SRAM FS ZEB Ultimate, 29" 180mm, Linear XL spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust

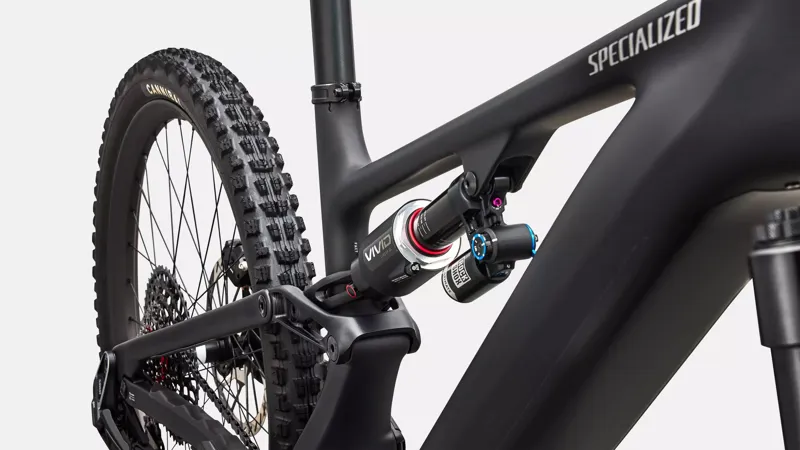

Rear Shock - All New Vivid Ultimate air, 230x62.5mm, Linear XL spring, RCT2 damper w/HSC and LCS adjust, and HBO adjust, rebound adjust
Brakes -
Rear Brake - SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm rotor
Front Brake - SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor
Drivetrain –
Chainrings - SRAM 34t T-Type chainring, 104 BCD, steel
Shift Levers - SRAM AXS Pod Controller w/discrete clamp
Rear Derailleur - SRAM X0 Eagle Transmission
Chain - SRAM X0 Eagle Transmission 12-Speed Flattop Chain
Crankset - SRAM XO Alloy crank, 155mm, ISIS interface
Cassette - SRAM XS 1295, 12 speed, 10-52
Wheels & tires -
Front Tyre - Butcher, GRID Gravity, T9 compound, TLR, 29x2.4"
Rear Tyre - Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"
Rear Wheel - Traverse HD 350, 27.5", 32H, carbon rim, 30mm inner width, DT Swiss 350 hub, 12x148
Front Wheel - Traverse HD Carbon 29" rim, DT Swiss 350, 29, 28H, carbon rim, 30mm inner width
Cockpit -
Seatpost - Bike Yoke Revive Max 3.0, 34.9, S2:125mm, S3:160mm, S4: 185mm, S5/S6:213mm
Saddle - Bridge Expert with MIMIC, Hollow Ti rails
Grips - Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black

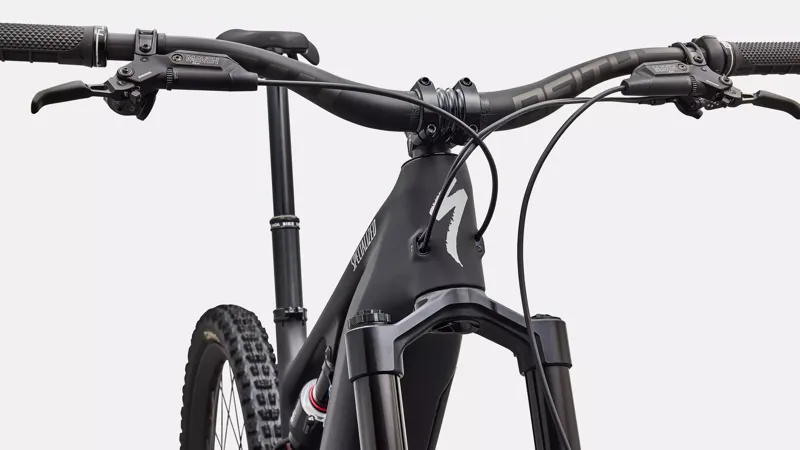

Handlebars - Deity Speedway Carbon, 5-degree upsweep, 9-degree backsweep. S1-S2: 810 width, 30mm rise: S3-S6: 810 width, 50mm rise
Stem - Deity, 35mm clamp, 42mm length
Weight - 24.4 kg (53 lb, 12.7 oz) S4
