Levo 4 Evo is built for riders who dont tiptoe around terrain. The riders who point into the steep stuff, ride bike parks without a chairlift, and want a bike that stays calm when things get fast, rough, and consequential. This is electric enduro.
Technical Specifications
E-bike -
Battery - 840Wh battery

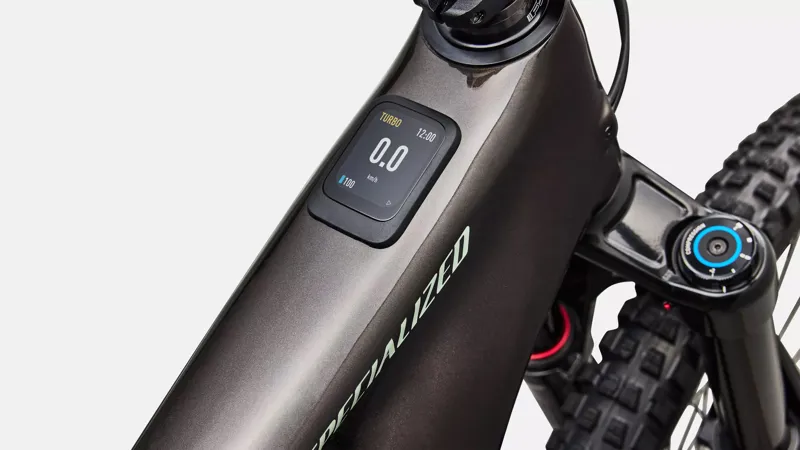

UI/Remote - Mastermind TCU, 2.2" high resolution screen, fully customizeable with Specialized app, works with Apple Find My

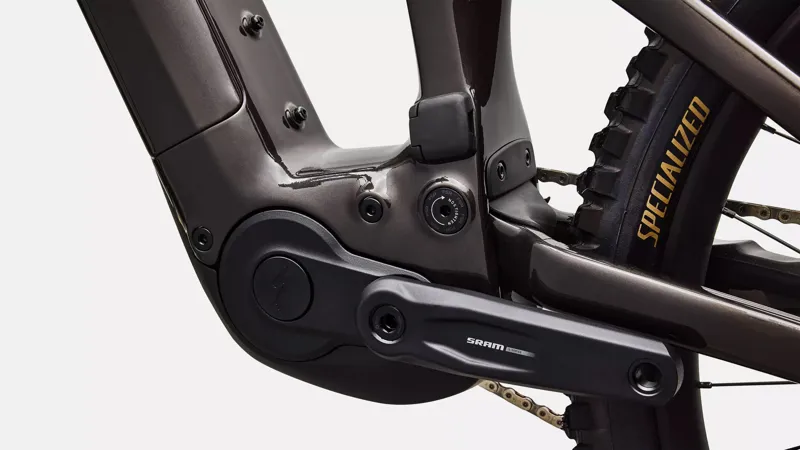

Motor - Specialized 3.1 Motor, 105Nm torque, 810W power
Charger - Specialized 4amp charger
Frameset -
Frame - Levo Evo FACT 11m carbon frame, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 170mm rear travel, 29" front wheel/27.5" rear wheel, adjustable head tube angle, chainstay length, integrated SWAT storage
Suspension -
Fork - All New SRAM FS ZEB Select, 29" 180mm, Linear XL spring, Delta RC damper, rebound adjust

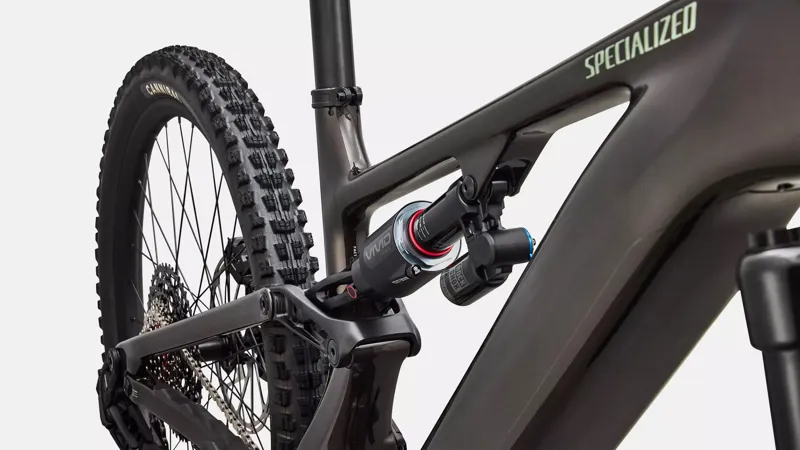

Rear Shock - All New Vivid Select air, 230x62.5mm, Linear XL spring, RT damper w/climb switch, rebound adjust
Brakes -
Rear Brake - SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 200mm rotor
Front Brake - SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor
Drivetrain -
Cassette - SRAM 12-speed,10-52t
Chainrings - SRAM 34t T-Type chainring, 104 BCD, steel
Shift Levers - SRAM AXS Pod Controller w/discrete clamp
Chain - SRAM GX Eagle Transmission 12-Speed Flattop Chain
Crankset - SRAM S1000 Alloy crank, ISIS interface, 155mm length
Rear Derailleur - SRAM S1000 Eagle AXS
Wheels & tires -
Front Tyre - Butcher, GRID Gravity, T9 compound, TLR, 29x2.4"
Rear Tyre - Cannibal GRID Gravity T9 TLR Downhill Tire 27.5x2.4"
Spokes - DT Swiss Elemental
Front Hub - Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear Hub - Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 28h, HG Steel Fhb
Rims - Specialized Alloy Rims
Cockpit -
Stem - Alloy Trail Stem, 35mm bar bore
Handlebars - Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise
Saddle - Bridge Comp, Hollow Cr-mo rails 155/143
Grips - Specialized Trail Grips
Seatpost - Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm
Weight - 25.16 kg (55 lb, 7.5 oz) S4
